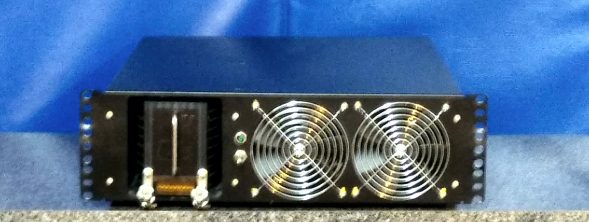

SENAS

SiMBiOTiX – Extendible – Network – Accessible – Storage

Holds one HPHD’s

  • 10Gbase LR fiber interface
  • 9.6TB — 19.2 TB of Solid state storage.
  • ~ 10 second transfer to the SENAS for infrastructure access
  • Enables data transfer from the SEMAS (Mobile NAS) to your infrastructure backbone.
  • Ideal for large data-sets generated by large format imagers/sensors

Description

SiMBiOTiX – Extendible – Network – Accessible – Storage

Time Savings/Increased Throughput
Shortens data transfer times significantly. ~ 10 second transfer of 19.2 Terabytes of data!
Portability
Provides a rugged, portable, multi-Terabyte data cartridge that is as easy to use as a USB memory stick.
Ease of Use
The HPHD mechanics, electronics, embedded firmware, and system software all work together to provide a user experience that is as seamless and automated as possible.
Environmental
Protect your data from the elements and rest assured with RAID configurations that you configure to meet your application.
Extendibility
Uses the SATA3 standard interface allowing you to use the latest SSD’s available in the 2.5” format. This allows for the total capacity to increase year over year, taking advantage of the improvements in storage technology.



Additional information

Weight 9 kg
Dimensions 60.96 × 43.18 × 13.34 cm
Size

Standard 3U, 19" Rack

Power

120/220 VAC, 50/60Hz

Temperature Range (Operating/Non-operating)

-0°C to +55°C/-40°C to +85°C (HPHD using commercial SSD’s)
-40°C to +85°C/-55°C to +95°C (HPHD using Mil grade SSD’s)
-0°C to +50°C/-0°C to +50°C (SEMAS)

RAID configurations

Supports raid 0, 5, 6 configurations

Read/Write Speed to the HPHD

Sequential data @ 1 Megabyte block sizes at a rate of >250MBytes per second

Network Interface

10Gbase-LR Fiber Optic Interface,
iSCSI server interface to the HPHD Data Cartridge

MSRP

$20,700 USD
